BT4-8124 E/C550 - Four Row Tapered Roller Bearings - Shanghai Zhiou Technology Co.,Ltd

model	BT4-8124 E/C550
type	bearing
Metering system	Metric system
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Four rows
Seal Type	Open

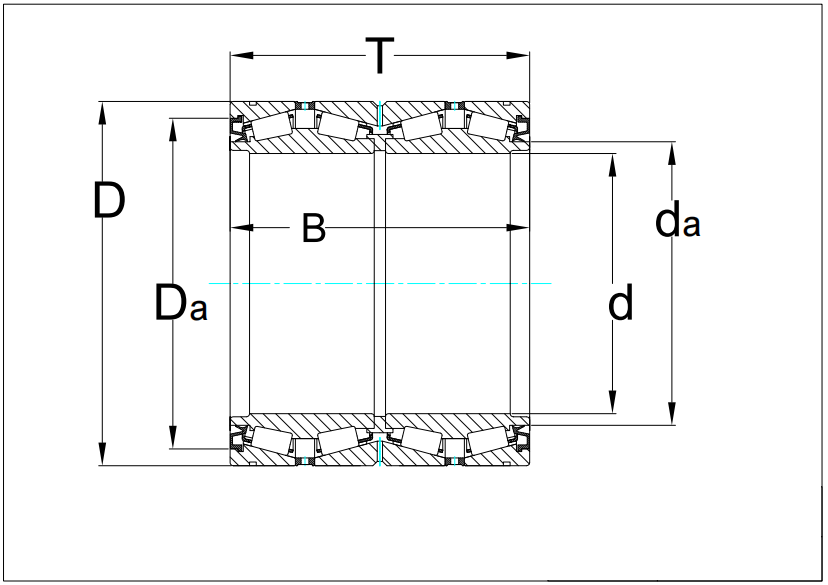

Inside Diameter	440 mm
Inner Diameter Tolerance	-0.045mm to 0
Outer Diameter	580 mm
Outer Diameter Tolerance	-0.05mm to 0
Overall bearing width above inner ring	360 mm
Overall bearing width exceeds inner ring tolerance	-0.25mm to 0
Total bearing width on outer ring	360 mm
Total Bearing Width of Outer Ring	+0.4mm to -0.4mm
Abutment diameter shaft	464 mm
Housing shoulder size	464 mm
Inner ring chamfer size	min.2.5 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	1395000 lbf
Static Radial Load	3217500 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
ABEC Standard	ABEC-1
Clearance Range	Standard (applicable to C3/C4/C5)
RoHS Standard	Conform
REACH Standard	Conform
Weight	566.59 lb
