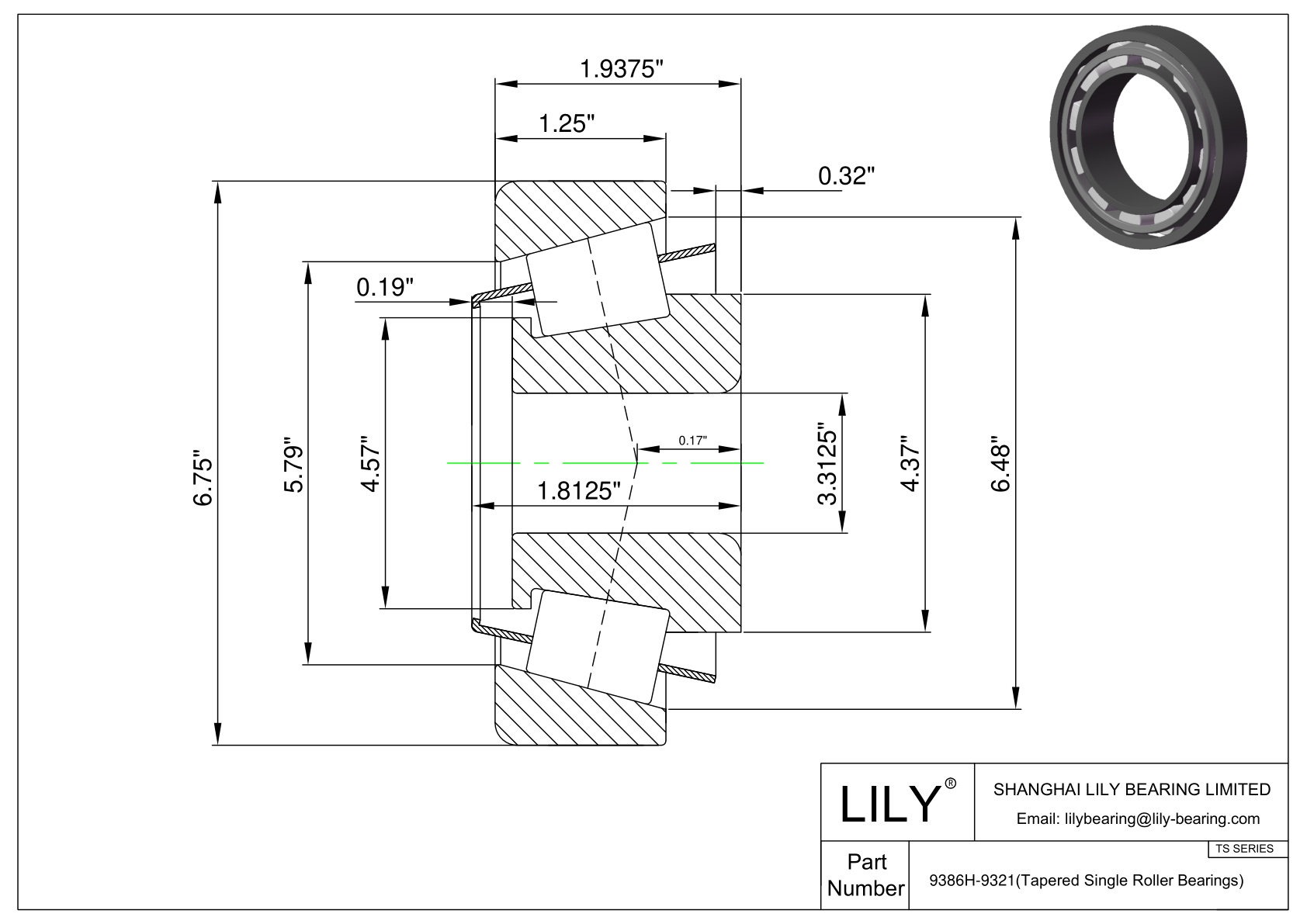

9386H-9321 - Single Row Tapered Roller Bearings - Shanghai Zhiou Technology Co.,Ltd

model	9386H-9321
type	bearing
Cone Part Number	9386H
Cup Part Number	9321
Metering System	Imperial
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	9300
Inside Diameter	3.3125"
Inner Diameter Tolerance	+0.025" to 0
Outer Diameter	6.75"
Outer Diameter Tolerance	+0.025" to 0
Cone Width	1.8125"
Cone Width	+0.076" to -0.254"
Cup width	1.25"
Cup Width	+0.051" to -0.254"
Width	1.9375"
Width Tolerance	+0.203" to 0
Cone back to clearance radius	0.14"
Cup back to cleaning radius	0.130"
Tapered Front Backing Diameter	4.57"
Tapered backing diameter	4.37"
Cup front backing diameter	6.48"
Cup backing diameter	5.79"
Cage cone front clearance	0.19"
Cage cone back clearance	0.32"
Effective central location	0.17"
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	81600 lbf
Static Radial Load	78800 lbf
Dynamic Radial Rating (90 million rpm) (C90)	21200 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	27700 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
