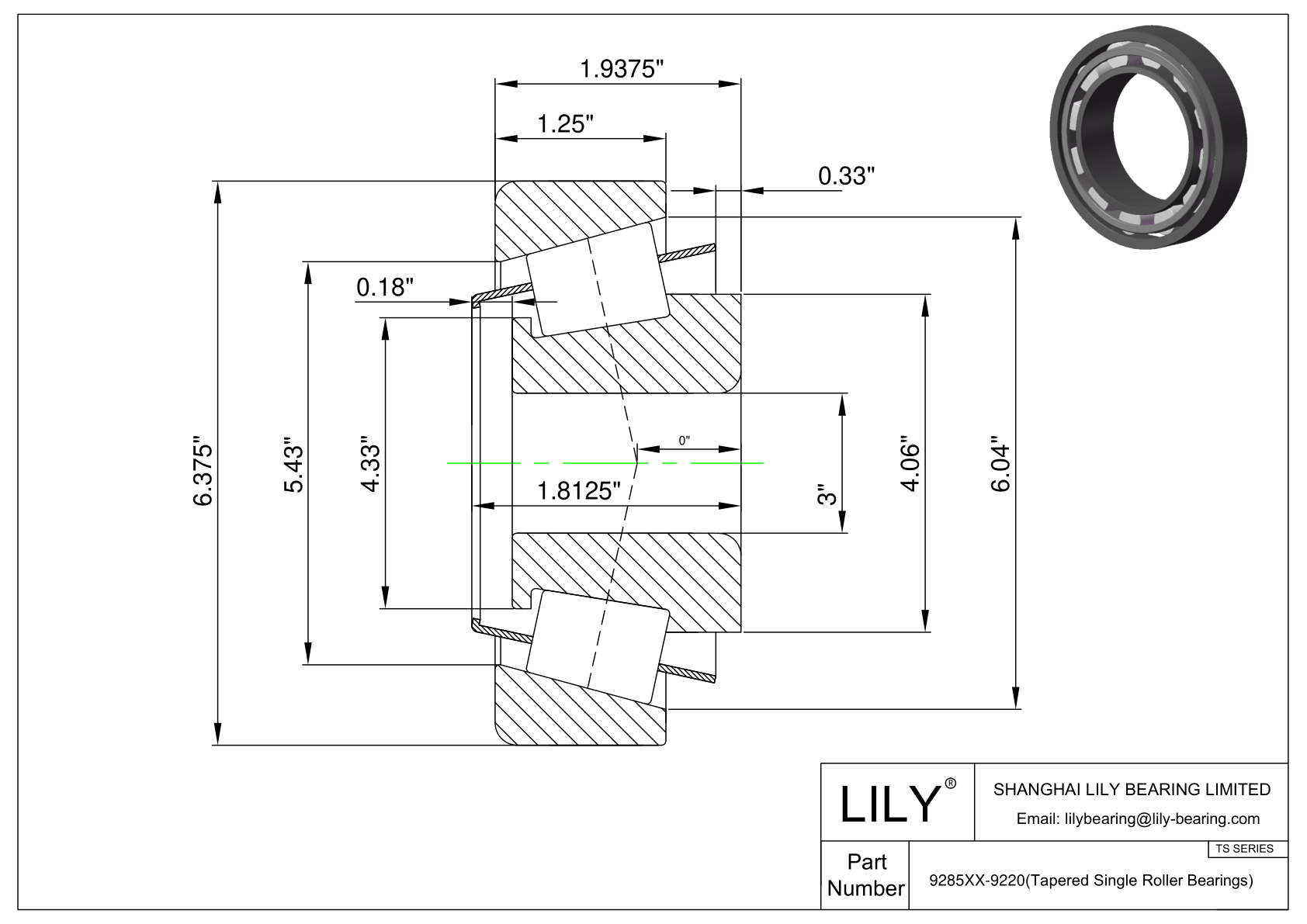

9285XX-9220 - Single Row Tapered Roller Bearings - Shanghai Zhiou Technology Co.,Ltd

model	9285XX-9220
type	bearing
Cone Part Number	9285XX
Cup Part Number	9220
Metering System	Imperial
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	9200
Inside Diameter	3"
Inner Diameter Tolerance	+0.013" to 0
Outer Diameter	6.375"
Outer Diameter Tolerance	+0.025" to 0
Cone Width	1.8125"
Cone Width	+0.076" to -0.254"
Cup width	1.25"
Cup Width	+0.051" to -0.254"
Width	1.9375"
Width Tolerance	+0.203" to 0
Cone back to clearance radius	0.14"
Cup back to cleaning radius	0.130"
Tapered Front Backing Diameter	4.33"
Tapered backing diameter	4.06"
Cup front backing diameter	6.04"
Cup backing diameter	5.43"
Cage cone front clearance	0.18"
Cage cone back clearance	0.33"
Effective central location	0"
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	66900 lbf
Static Radial Load	74200 lbf
Dynamic Radial Rating (90 million rpm) (C90)	17300 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	21000 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
