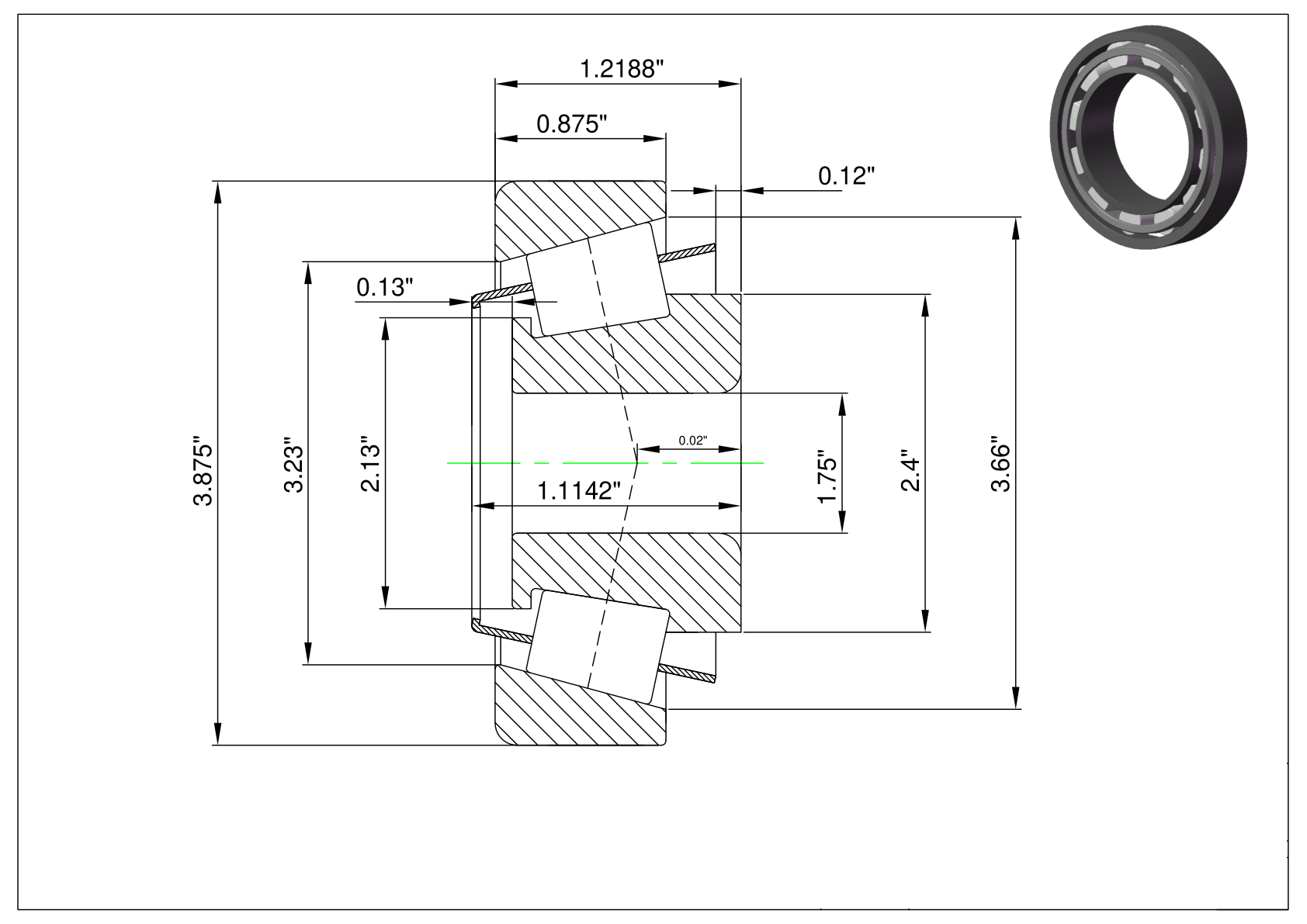

HM903247-HM903216 - Single Row Tapered Roller Bearings

model	HM903247-HM903216
type	bearing
Cone Part Number	HM903247
Cup Part Number	HM903216
Metering System	Imperial
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	HM903200
Inside Diameter	1.75"
Inner Diameter Tolerance	+0.013" to 0
Outer Diameter	3.875"
Outer Diameter Tolerance	+0.025" to 0
Cone Width	1.1142"
Cone Width	+0.076" to -0.254"
Cup width	0.875"
Cup Width	+0.051" to -0.254"
Width	1.2188"
Width Tolerance	+0.203" to 0
Cone back to clearance radius	0.050"
Cup back to cleaning radius	0.03"
Tapered Front Backing Diameter	2.13"
Tapered backing diameter	2.4"
Cup front backing diameter	3.66"
Cup backing diameter	3.23"
Cage cone front clearance	0.13"
Cage cone back clearance	0.12"
Effective central location	0.02"
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	30700 lbf
Static Radial Load	29700 lbf
Dynamic Radial Rating (90 million rpm) (C90)	7950 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	10100 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
